MQTT_NS::v5::property::detail::binary_property Struct Reference

#include <property.hpp>

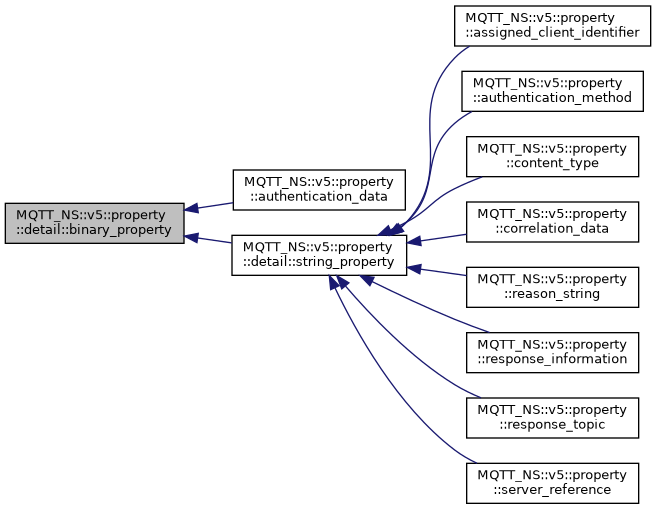

Inheritance diagram for MQTT_NS::v5::property::detail::binary_property:

Collaboration diagram for MQTT_NS::v5::property::detail::binary_property:

Public Member Functions
	binary_property (property::id id, buffer buf)
void	add_const_buffer_sequence (std::vector< as::const_buffer > &v) const
	Add const buffer sequence into the given buffer. More...
template<typename It >
void	fill (It b, It e) const
	Copy the internal information to the range between b and e it is for boost asio APIs. More...
property::id	id () const
	Get property::id. More...
std::size_t	size () const
	Get whole size of sequence. More...
constexpr buffer const &	val () const

Static Public Member Functions
static constexpr std::size_t	num_of_const_buffer_sequence ()
	Get number of element of const_buffer_sequence. More...

Public Attributes
property::id	id_
buffer	buf_
boost::container::static_vector< char, 2 >	length_

Static Public Attributes
static constexpr ostream_format const	of_ = ostream_format::direct

Constructor & Destructor Documentation

binary_property()

MQTT_NS::v5::property::detail::binary_property::binary_property ( property::id  id, buffer  buf  )

inline

Member Function Documentation

add_const_buffer_sequence()

void MQTT_NS::v5::property::detail::binary_property::add_const_buffer_sequence ( std::vector< as::const_buffer > &  v ) const

inline

Add const buffer sequence into the given buffer.

Parameters

v	buffer to add

fill()

template<typename It >

void MQTT_NS::v5::property::detail::binary_property::fill ( It  b, It  e  ) const

inline

Copy the internal information to the range between b and e it is for boost asio APIs.

Parameters

b	begin of the range to fill
e	end of the range to fill

id()

property::id MQTT_NS::v5::property::detail::binary_property::id ( ) const

inline

Get property::id.

Returns

id

num_of_const_buffer_sequence()

static constexpr std::size_t MQTT_NS::v5::property::detail::binary_property::num_of_const_buffer_sequence ( )

inlinestaticconstexpr

Get number of element of const_buffer_sequence.

Returns

number of element of const_buffer_sequence

size()

std::size_t MQTT_NS::v5::property::detail::binary_property::size ( ) const

inline

Get whole size of sequence.

Returns

whole size

val()

constexpr buffer const& MQTT_NS::v5::property::detail::binary_property::val ( ) const

inlineconstexpr

Member Data Documentation

buf_

buffer MQTT_NS::v5::property::detail::binary_property::buf_

id_

property::id MQTT_NS::v5::property::detail::binary_property::id_

length_

boost::container::static_vector<char, 2> MQTT_NS::v5::property::detail::binary_property::length_

of_

constexpr ostream_format const MQTT_NS::v5::property::detail::binary_property::of_ = ostream_format::direct

staticconstexpr

---

The documentation for this struct was generated from the following file:

• /home/kondo/work/mqtt_cpp/include/mqtt/property.hpp
